Connect SmartDraw to Dropbox

There are three ways to connect to 3rd party storage services in SmartDraw:

  1. Under the Documents view from the Dashboard
  2. The Save As/Save a Copy dialog
  3. Using Integrations on the Dashboard

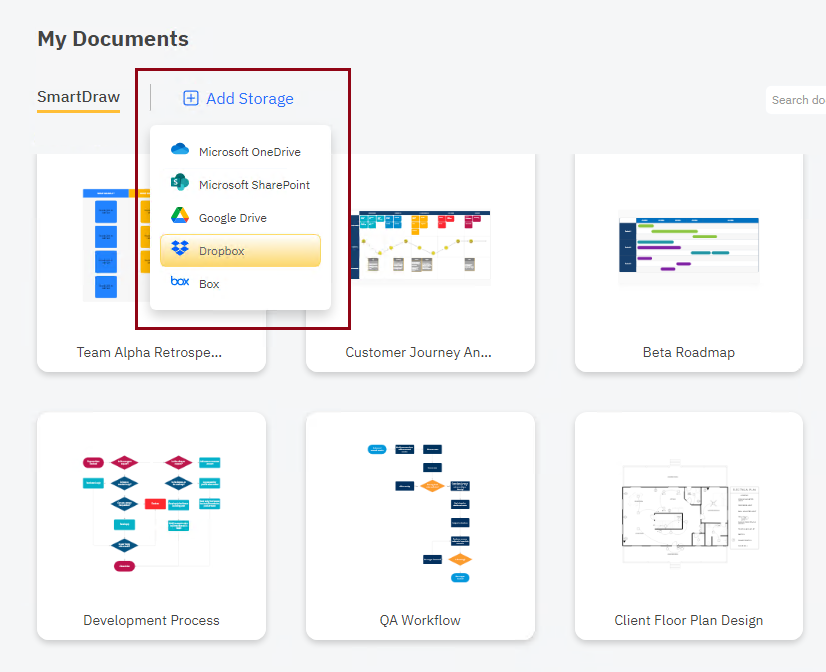

Connect under Documents

On the Dashboard, click on Documents and then choose Dropbox® from the Add Storage drop-down.

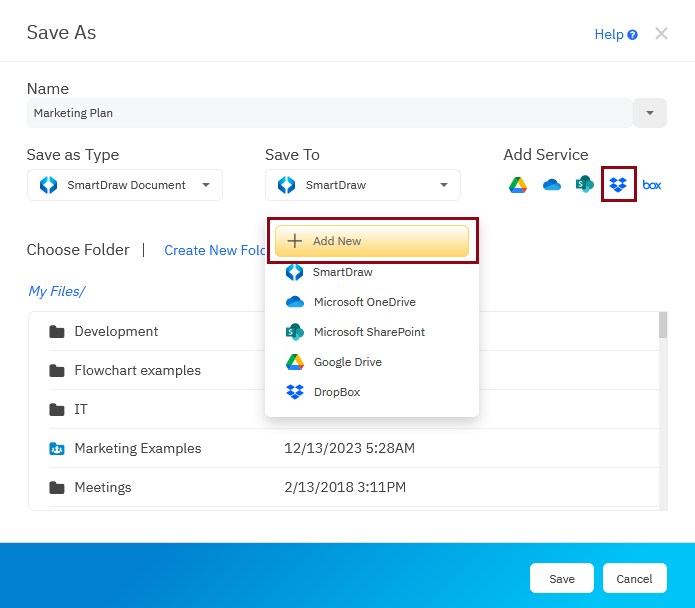

Connect from the Save As/Save a Copy Dialog

Alternatively you can also add a new service like Dropbox right from the Save As/Save a Copy dialog. Just click on the logo under Add Service or Add New under the Save To drop down.

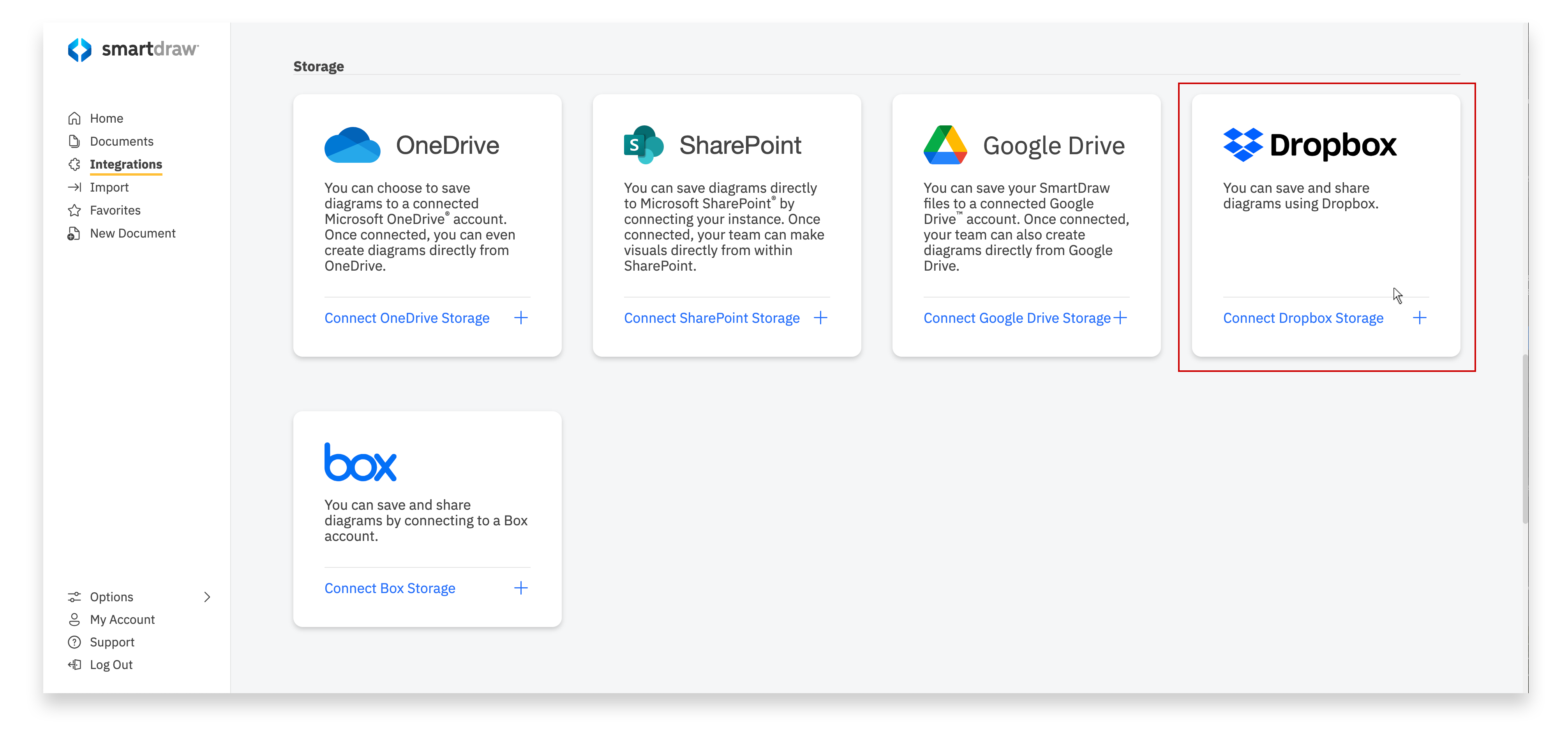

Connect from Integrations

One final place you can create a connection to Dropbox is under the Integrations section of the Dashboard. Click on Integrations and then scroll to the Storage section where you can click on Dropbox.

Follow the prompts to connect.

SmartDraw will automatically connect to your DropBox account.

Save to Dropbox

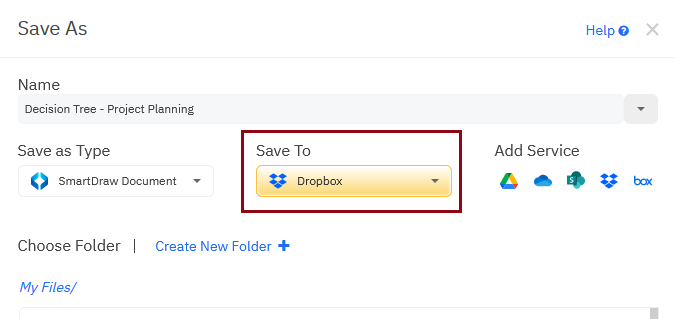

You can now save any diagram to Dropbox using Save As/Save a Copy in the File tab. You can save to existing folder or create a new folder.

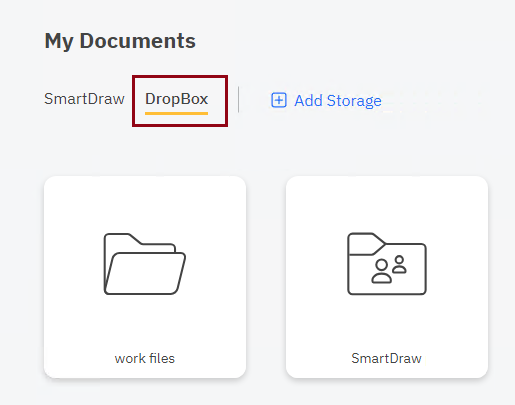

Find Documents on Dropbox

Any diagram saved to Dropbox can be found in the Documents view  under the Dropbox tab.
